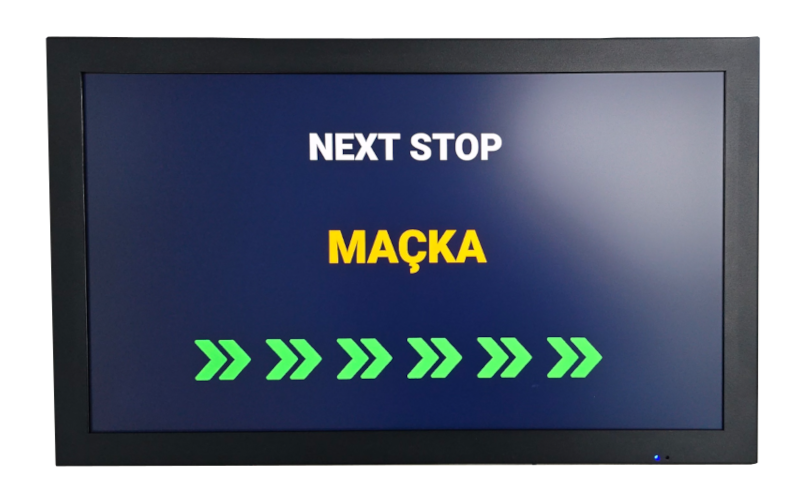

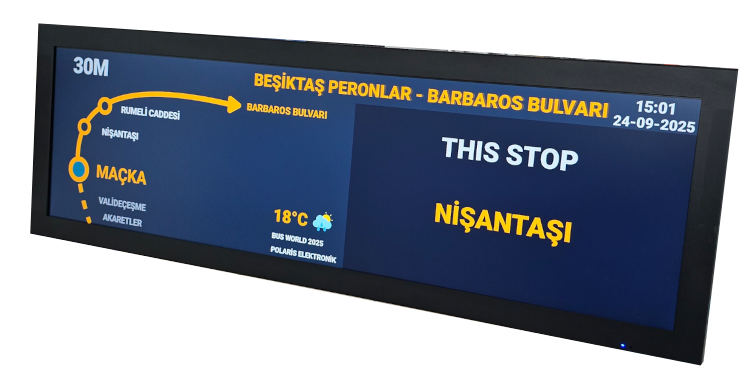

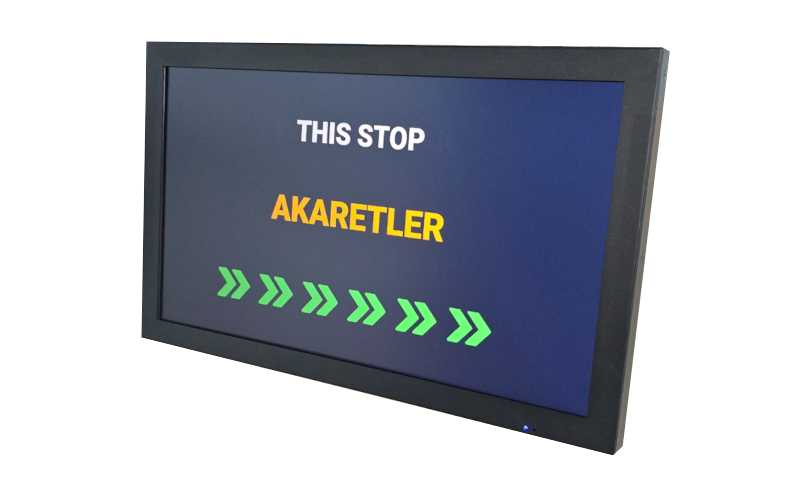

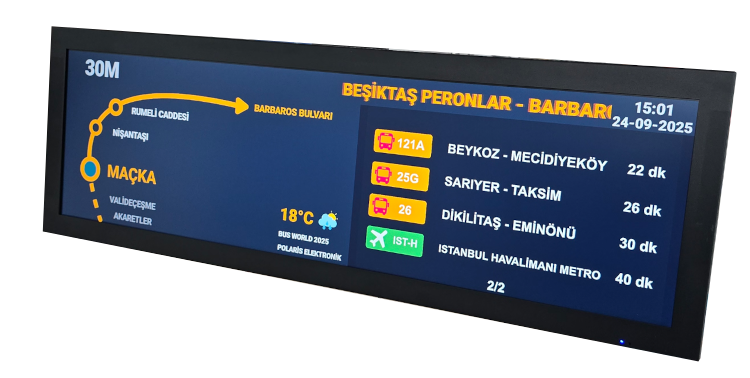

LCD in-vehicle (internal) displays

Our LCD in-vehicle (internal) displays, which comes with two different size options 21.5"/29" are designed to provide clear and concise information to passengers. These displays shows route information (stop-list), "Current Stop" and "Next Stop" name, weather info, video/image media, and custom text messages.

Technology

TFT-LCD

Display colors

True color (16.7 Million)

Viewing Angle

160°
Up to 178° (under ideal conditions)

Resolution

Different resolutions & pixel pitchs are available

Contrast Ratio

min 700
depends on panel dimensions

Brightness

min 450 nits
depends on panel dimensions

Frame Rate

60 Hz

Working Voltage

24 VDC

Power Consumption

42 W … 60 W
depends on panel dimensions

Working Temperature
(Inside the vehicle)

0°C ... +50°C

Storage Temperature

-20°C ... +60°C

Screen Lifetime

Approx. 30,000 hours

Casing material

Metal case with matte black color
