Control Devices

Control devices form the backbone of passenger information systems. They manage data exchange with display panels, monitor their operational status, and offer drivers a user-friendly interface for line selection.

Display Type

Graphic LCD

Backlight

Yes

Menu Language

Turkish/English (standard)
New languages can be added upon request

Working Voltage

24 VDC (9 ... 32V)

Power Consumption

0.5A (max)

Working Temperature
(Inside the vehicle)

-30°C ... +70°C

Storage Temperature

-40°C ... +100°C

Casing material

Metal + Black ABS

Case size

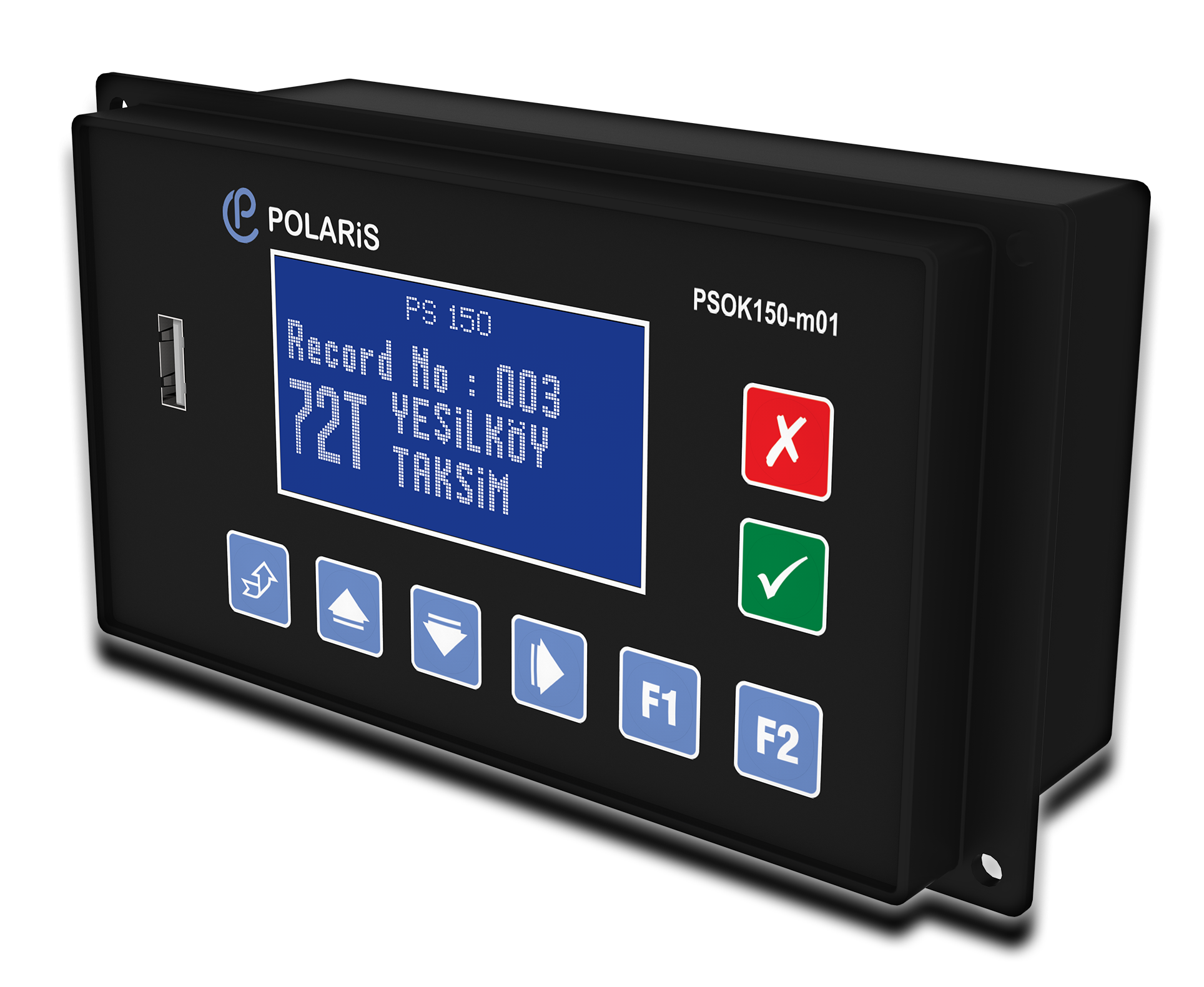

m01 Series: 153 x 83 x 50  mm

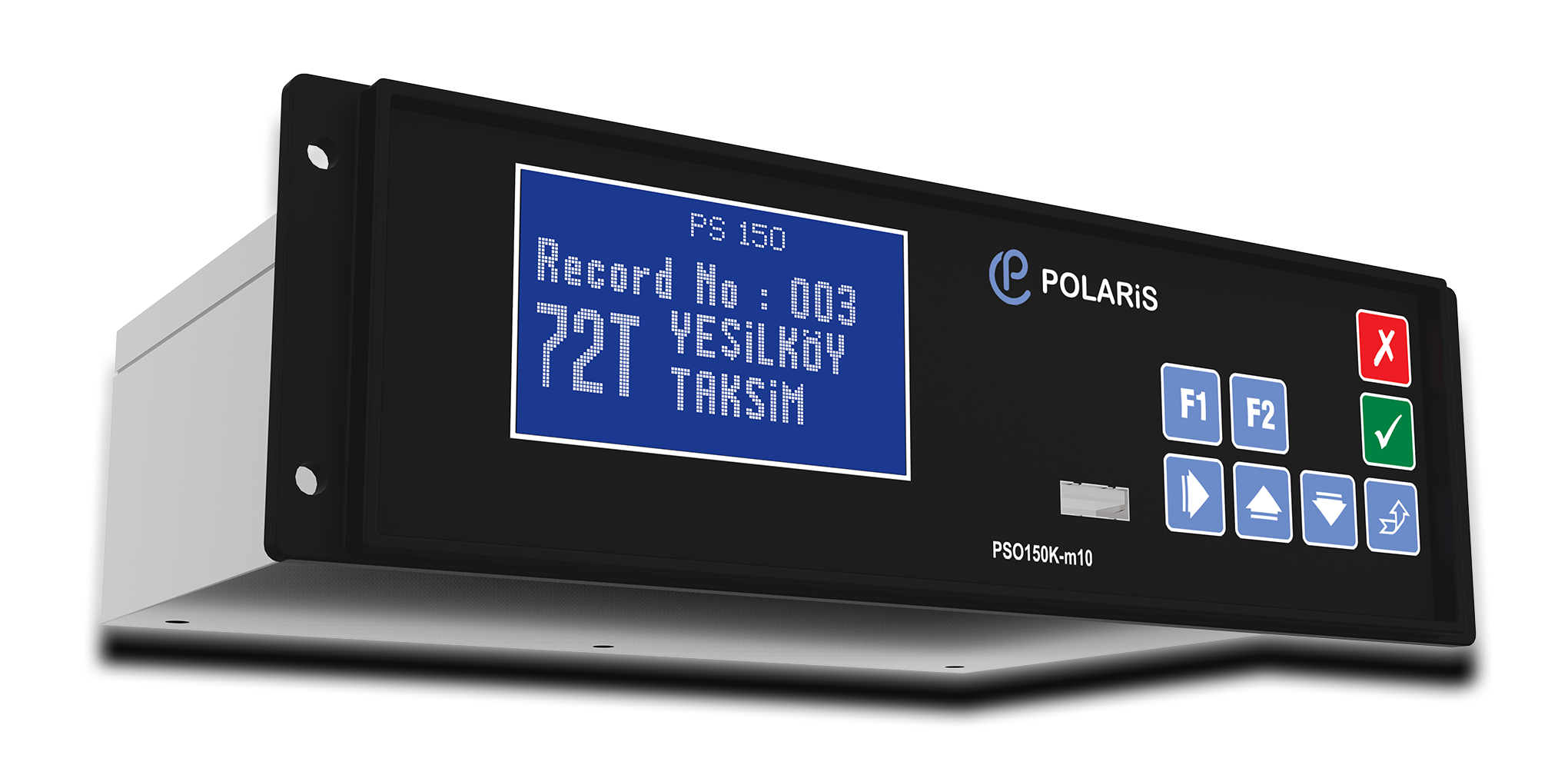

m10 Series: 206 x 61 x 130 mm

External Communication Ports
(With vehicle computer, OBU, validator etc.)

---
(Optional: RS-232, RS-485, IBIS, Ethernet)

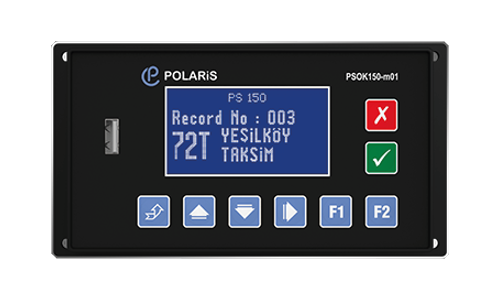

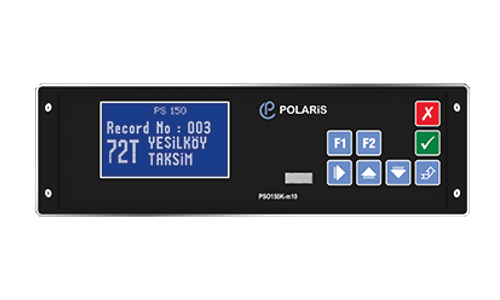

LCD display and membrane button pad

Front side of control panel includes LCD display and membrane button pad for various operations.

Connector placement

Cable connectors are equipped at the back of the device.

Mounting options

Its ergonomic enclosure allows the control unit to be installed either on the back of front-side display or in another location near the driver, depending on customers preference.

User-friendly display

Equipped with a user friendly graphic LCD display, the unit offers users an intuitive way to input commands and informed easily.

USB data-transfer

Equipped with USB-A slots, our control devices allow operators to easily upload line/route data to display panels via USB sticks.
